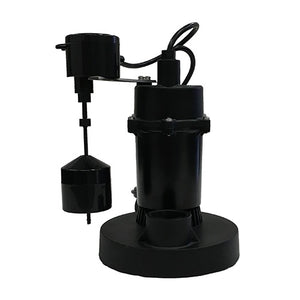

JACKEL 1/4 HP Submersible Sump Pump (Model: JP225V)
Features and Benefits
- Aluminum motor housing maximizes pump life
- 3-year warranty
- Innovative vertical switch for automatic operation
- Top suction design filters debris and minimizes clogging
- Heavy-duty, energy-efficient, PSC motor with thermal overload protection
- Ball bearings for quiet operation
- Oil-filled motor for cooling and continuous lubrication
- 1-1/2” or 1-1/4” with adapter (not included) female NPT discharge for easy installation
Specifications
Construction Materials
Motor Housing: Aluminum
Volute: Thermoplastic
Motor
Horsepower: 1/4
Volt: 115 AC, 60 Hz
Type: Permanent Split Capacitor (PSC), oil cooled
Insulation: Class B
Discharge Size: 1-1/2” or 1-1/4” with adapter (not included)
Solids Handling: 1/8”
Liquid Temperature (max.): 130o F (55o C)
Hardware: Stainless Steel
Impeller: Impact Resistant Thermoplastic
Power Cord: 10' grounded three-prong, water-resistant, type SJTW-A/SJTW
Switch: Mechatronic vertical switch
Switch On Level: 8.9””
Switch Off Level: 4.5”
Shut Off Head: 20’
Maximum Flow: 47 GPM
Minimum Basin Diameter: 15”
